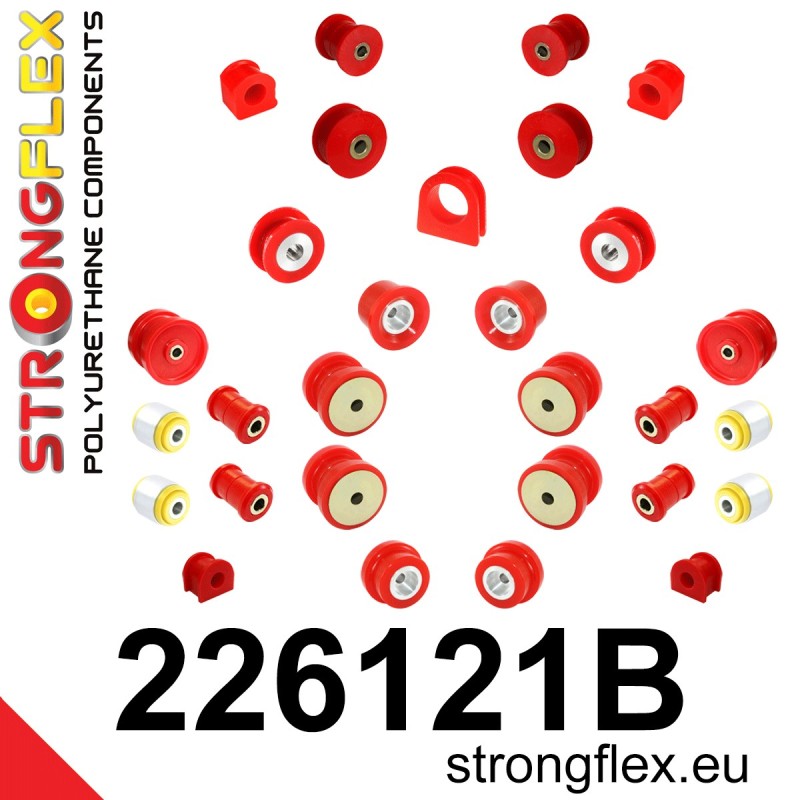

226121B: Full suspension bush kit

Reference: 226121B

Product name: Full suspension bush kit

Fits to:

• Audi A3 I (96-03) 8L Quattro
• Audi S3 I (96-03) 8L
• Audi TT 8N (99-06) Quattro


• Seat Leon I (99-05) 1M 4x4
• Seat Leon I (99-05) 1M Cupra R 4x4


• Škoda Octavia I (96-10) 1U 4x4


• Volkswagen Bora I (98-05) 1J 4Motion
• Volkswagen Golf IV (97-10) 1J 4Motion
• Volkswagen Golf IV (02-03) 1J R32
• Volkswagen New Beetle (97-10) RSi 4Motion

Include:

• 2x 221072B: Front wishbone - front bush 30mm
  or
• 2x 221343B: Front wishbone - front bush 45mm


• 2x 221077B: Front wishbone - rear bush
  or
• 2x 221344B: Front wishbone - rear bush


• 2x 221088B: Front anti roll bar bush
  or
• 2x 221089B: Front anti roll bar bush


• 0/4x 221084B: Anti roll bar link bush


• 2x 021784B: Front subframe bush


• 4x 221371B: Rear wishbone inner bush
• 4x 221940A: Rear tie bar to hub bush SPORT
• 2x 221372B: Rear lower wishbone front mounting bush
• 2x 221445B: Rear anti roll bar bush


• 2x 221862B: Rear diff mount - front bush
• 2x 221863B: Rear diff mount - rear bush
• 4x 221864B: Rear subframe bush


• 1x 221965B: Steering rack mount bush


• 0/2x 221899B: Front shock top mount bush

Diagrams:

• D0208
• D2203
• D2207
• D2208
• D2216
• D2223
• D2227
• S2201
• S2202
• S2206
• S2207

Notes

• In models in which "cast steel" wishbones were installed, there are two types of front wishbone bushings.
  Earlier models were equipped with sleeves with a diameter of Ø30mm (221072), while later models had sleeves with a diameter of Ø45mm (221343). The rear bushing for this control arm is 221344.
  For "stamped steel/sheet metal" wishbones, matching bushings are: 221072 and 221077.
  Before placing an order, please check the type of swing arm carefully. In the case of a "steel cast" swing arm, also check the diameter of the front bush (See photo S2201)!


• There are two types of front stabilizer bushings.
  OLD TYPE - 221088 or NEW TYPE - 221089
  See photo S2202


• Depending on the type of front stabilizer link, select the correct number of bushings 221084 (0 or 4 pieces)


• Front shock top mount bush 221899B:
  Depending on your needs, choose the appropriate quantity 0pcs / 2pcs.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 29/31/33/35

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
