286204A: Full suspension bush kit R33 R34 AWD SPORT
Reference: 286204A
Product name: Full suspension bush kit R33 R34 AWD SPORT
Fits to:
- Nissan Laurel VII (93-97) C34 AWD
- Nissan Laurel VIII (97-02) C35 AWD
- Nissan Skyline IX (93-98) R33 AWD
- Nissan Skyline X (97-02) R34 AWD
- Nissan Stagea I (96-01) C34 AWD
Include:
- 2x 281400A: Front anti roll bar bush SPORT
or - 2x 281401A: Front anti roll bar bush GT-R SPORT
- 4x 281622A: Front upper wishbone bush SPORT
- 2x 281913A: Front hub bush SPORT
- 1x 281261A: Steering rack mount bush SPORT
45mm/48mm/50mm - 2x 281262A: Front lower radius arm to chassis bush SPORT
or - 2x 281788A: Front lower radius arm to chassis bush GT-R SPORT
- 2x 281399A: Rear roe link inner bush SPORT
- 10x 281218A: Rear arm bush SPORT
- 4x 281398A: Rear trailing arm bushes SPORT
- 2x 281268A: Rear anti roll bar bush SPORT
- 4x 281269A: Rear anti roll bar link bush SPORT
- 4x 281271A: Rear beam mounting bush AWD SPORT
- 2x 281849A: Rear diff mount - front bush SPORT
- 2x 281850A: Rear diff mount - rear bush SPORT

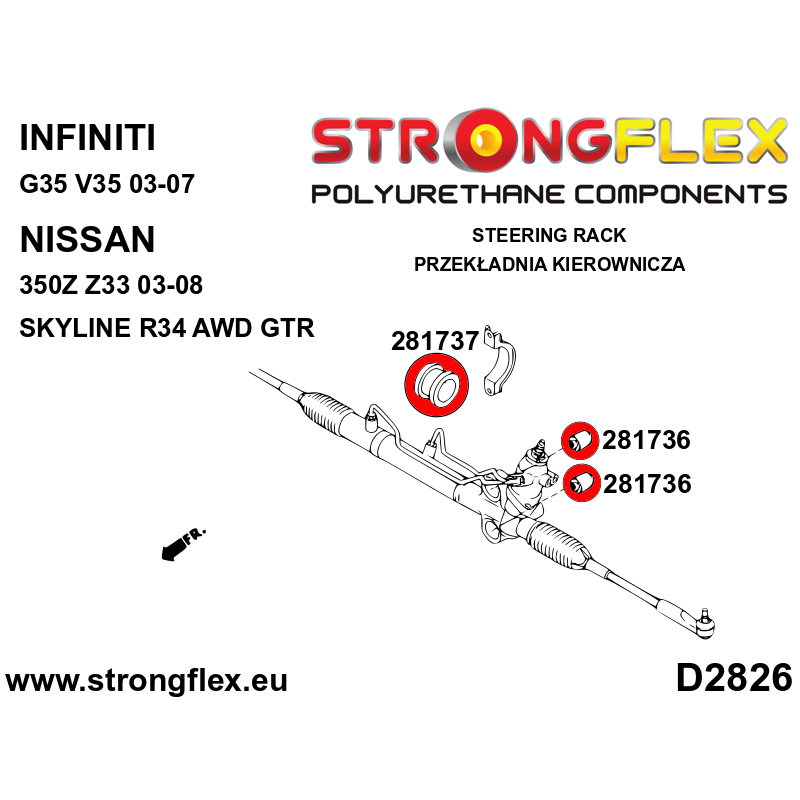

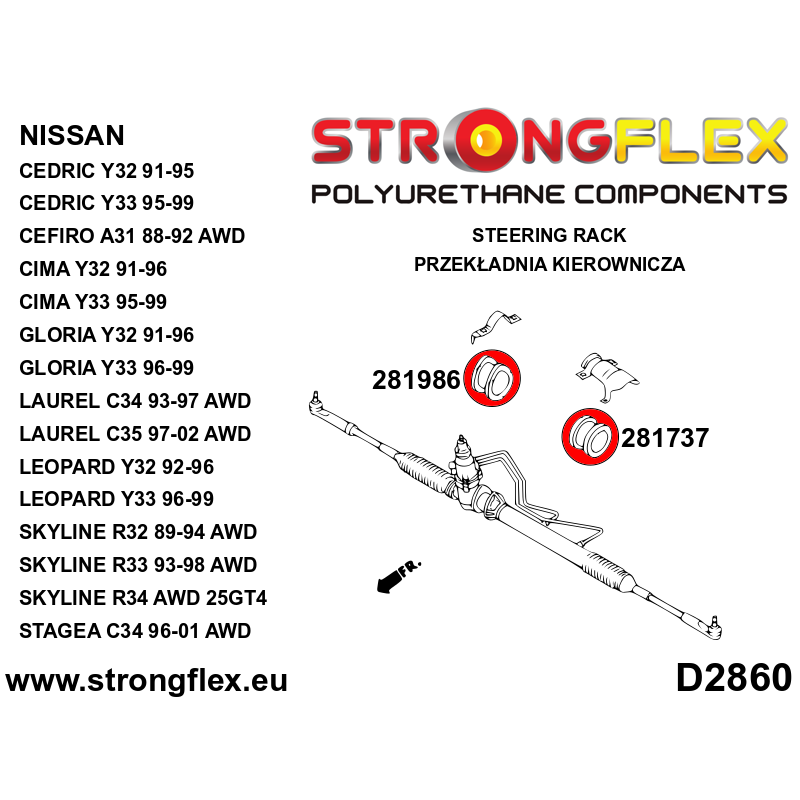

Diagrams:
- D2803
- D2813
- D2839
- D2832
- D2841
- S2804
- S2805
Notes
- Select the appropriate diameter of the steering gear bushing 45mm/48mm/50mm.
- For Skyline GT-R i Stagea 260RS Autech, select front stabilizer bushings 281401.
For other versions, select front stabilizer bushings 281400. - For Skyline GT-R i Stagea 260RS Autech, select front torque rod bushings 281788.
For other versions, select front torque rod bushings 281262.
- Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01.
You can buy a replacement for the original washer matched to our bush.
In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 41
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
Currency:
Regular price: €794.00
€714.60
Discount: 10%
Discount: 10%
In stock
