Reference: 216266B

Product name: Full suspension bush kit

Fits to:

  • Toyota Aristo I (91-97)
  • Lexus GS I (91-97)

Include:

  • 2x 211977A: Front lower arm bush SPORT
  • 2x 211978A: Front lower radius arm to chassis bush SPORT
  • 2x 211979B: Front anti roll bar bush
  • 4x 211912A: Front upper arm bush SPORT
  • 2x 211924B: Rear toe adjuster bush 35mm

           or

  • 2x 211628B: Rear toe adjuster bush 40mm
  • 2x 211629B: Rear trailing arm rear bush
  • 2x 211630B: Rear track control arm inner bush
  • 2x 211632A: Rear track control arm outer bush 40,5mm SPORT
  • 2x 211694B: Rear trailing arm front bush 46mm
  • 4x 211633B: Rear upper wishbone bush
  • 2x 211923B: Rear anti roll bar bush
  • 2x 211792B: Rear beam - front bush
  • 2x 211793B: Rear subframe - rear bush
  • 2x 211794B: Rear diff mount - front bush
  • 1x 211795B: Rear diff mount - rear bush
  • 1x 211796B: Rear diff mount - rear bush

Diagrams:

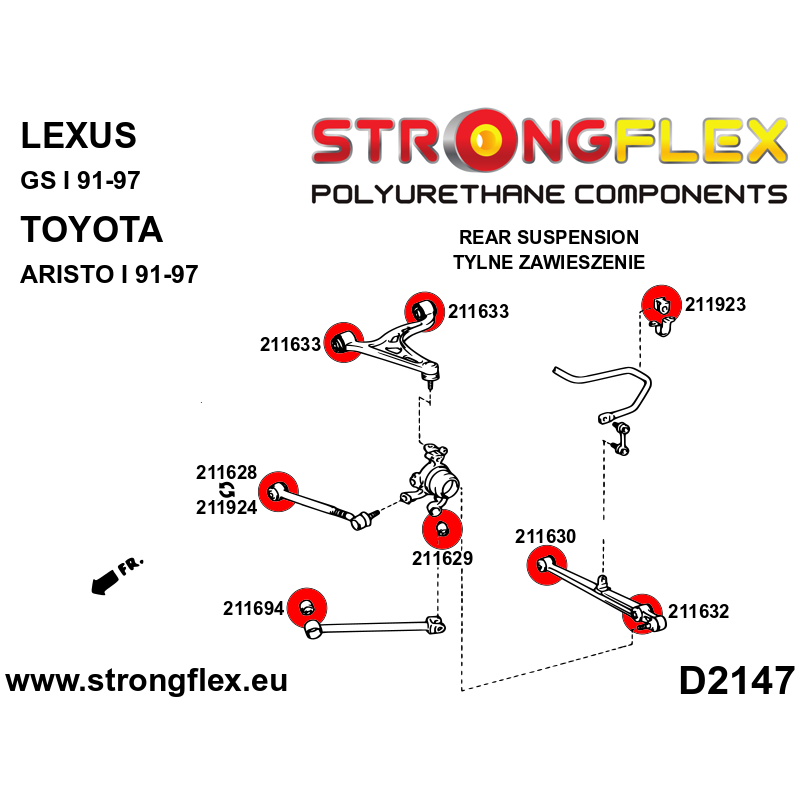

  • D2147

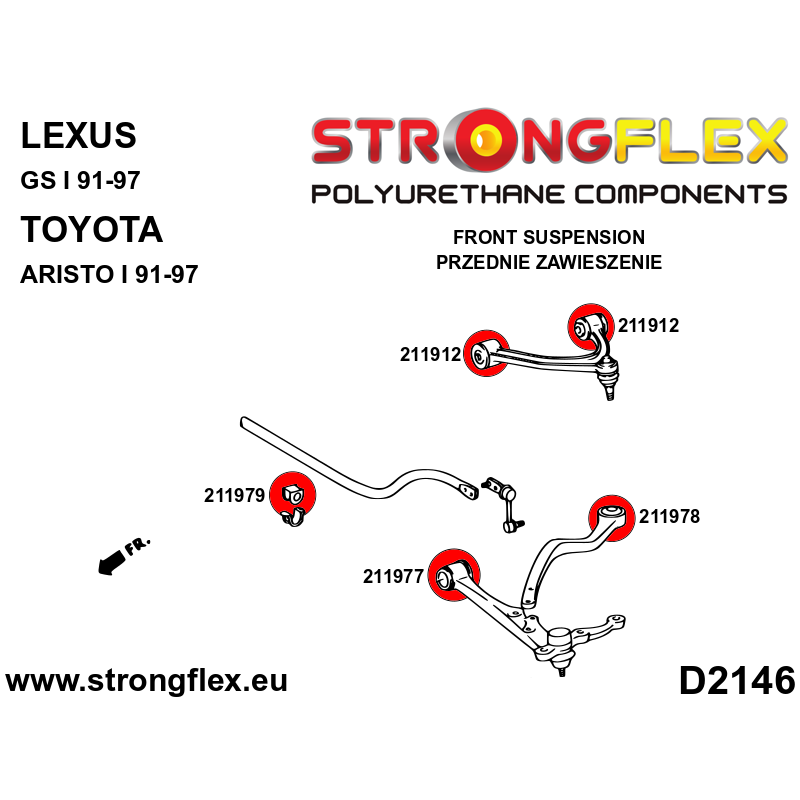

  • D2146

ATTENTION!

If you have a model produced from 1993 to 1995, choose rear tie rod bushings 211628 (diameter 40mm).

If you have a model produced from 1996 to 1997, choose rear tie rod bushings 211924 (diameter 35mm).

Please check the rod socket diameter before purchasing.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 34

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Currency:

Regular price: $804.52
€667.80
Discount: 10%
Front ARB diameter
Rear ARB diameter
