086204B: Full suspension bush kit

Reference: 086204B

Product name: Full suspension bush kit

Fits to:

• Honda Prelude IV (92-96) BA / BB

Include:

• 8x 081639B: Upper arm bush
• 2x 081640B: Front lower inner arm bush
• 2x 081641B: Front lower outer arm bush
• 2x 081713B: Front anti roll bar bush
• 2x 081740B: Front radius rod bush
• 4x 081743B: Front anti roll bar link bush
• 2x 081714B: Rear anti roll bar bush
• 2x 081741B: Rear anti roll bar link bush


• 0/2x 081742A: Rear toe adjuster inner bush SPORT*


• 2x 081643A: Rear lower inner arm bush SPORT
• 2x 081646B: Rear lower outer arm bush
• 2x 081647B: Rear trailing arm front bush
• 2x 081648B: Rear trailing arm rear bush

Diagrams:

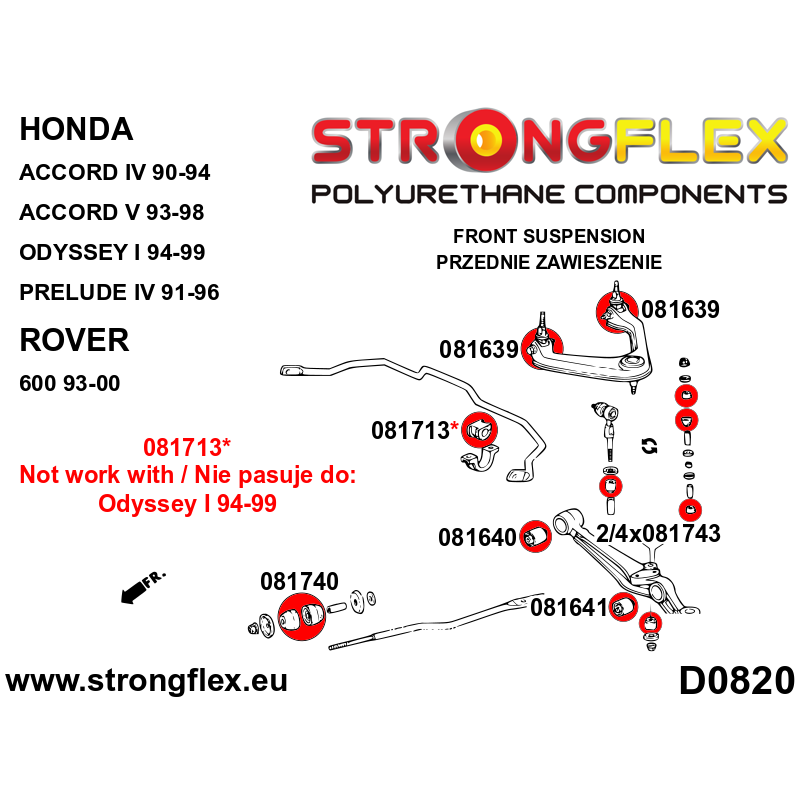

• D0820
• D0822
• S0802
• S0803

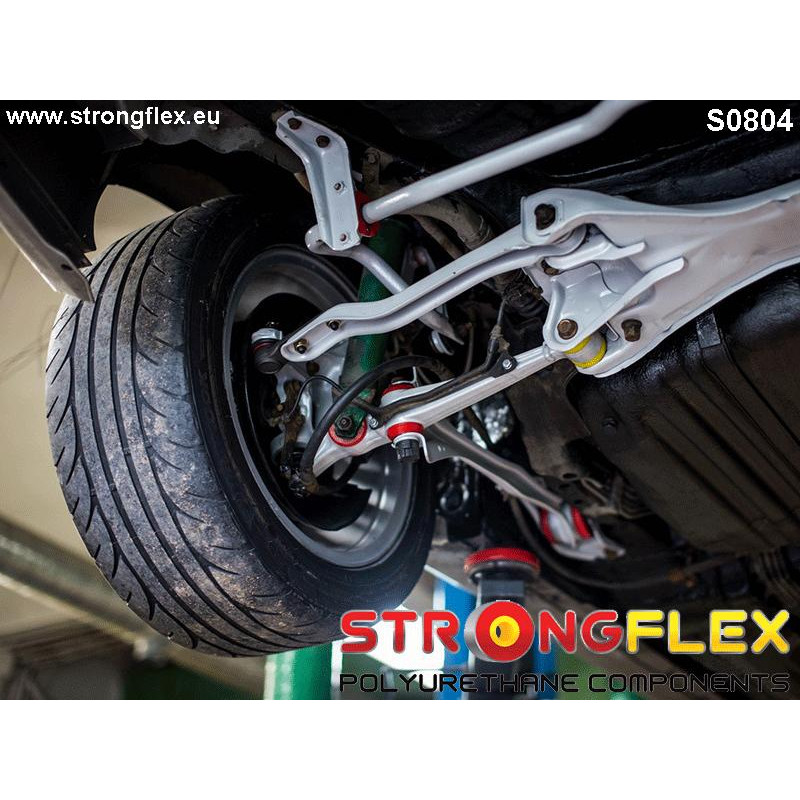

• S0804

Notes

• For bush 081647:
  To install the polyurethane bushing 081647 you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!


• 081742:
  The bush only fits models with the 4WS system. For models without the 4WS system, select "+". For models with the 4WS system, select "-".

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 32/34

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
