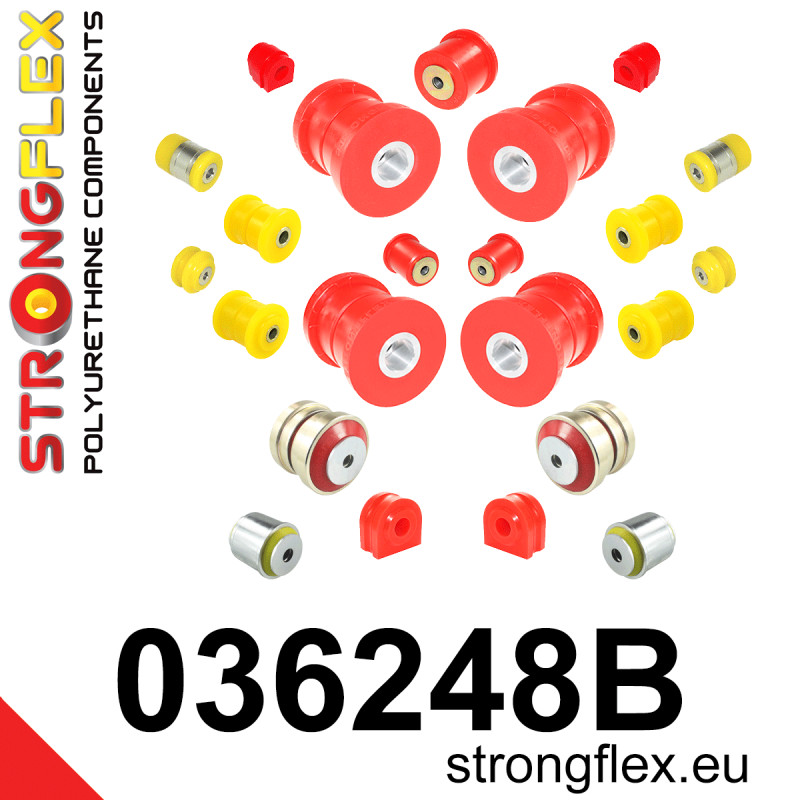

036248B: Full suspension polyurethane bush kit

Reference: 036248B

Product name: Full suspension polyurethane bush kit

Fits to:

• BMW 5 E60/E61 Sedan/Touring (03-10) RWD
• BMW 6 E63/E64 (03-10)

Include:

• 2x 031851B: Front anti roll bar bush
  or
• 2x 031964B: Front anti roll bar bush


• 2x 031586B: Rear anti roll bar bush
  or
• 2x 031964B: Rear anti roll bar bush


• 2x 031421A: Front inner track control arm bush SPORT
• 2x 031688B: Front control arm to chassis bush


• 0/2x 031744A: Rear toe adjust inner bush SPORT (M10 screw)


• 2x 031745A: Rear upper arm inner bush SPORT


• 2x 031197A: Rear lower trailing arm - front bush SPORT (M12 screw)
• 2x 031198A: Rear lower trailing arm - rear bush SPORT (M14 screw)


• 2x 031941B: Rear subframe – front bush
• 2x 031942B: Rear subframe – rear bush
• 2x 031939B: Rear diff mount - front bush
• 1x 031940B: Rear diff mount - rear bush

Diagrams:

• D0327
• D0342
• D0355

Notes

• This kit only fits RWD models, does not match the XDRIVE version (xi xd) This kit not works with M5 & M6 models.


• If your model has a DYNAMIC DRIVE system (active anti roll bar), select bush 031964. For the model with standard anti roll bar, select 031851 (front arb), 031586 (rear arb).


• 031744 - for versions BMW 6 E63 630i, 645Ci, 650i, 6 E64 630i, 645Ci, 650i select - . In these versions a control arm with a Uniball bushing is used. For BMW 5 Series and other versions of the BMW 6 Series select +.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 21/23

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
