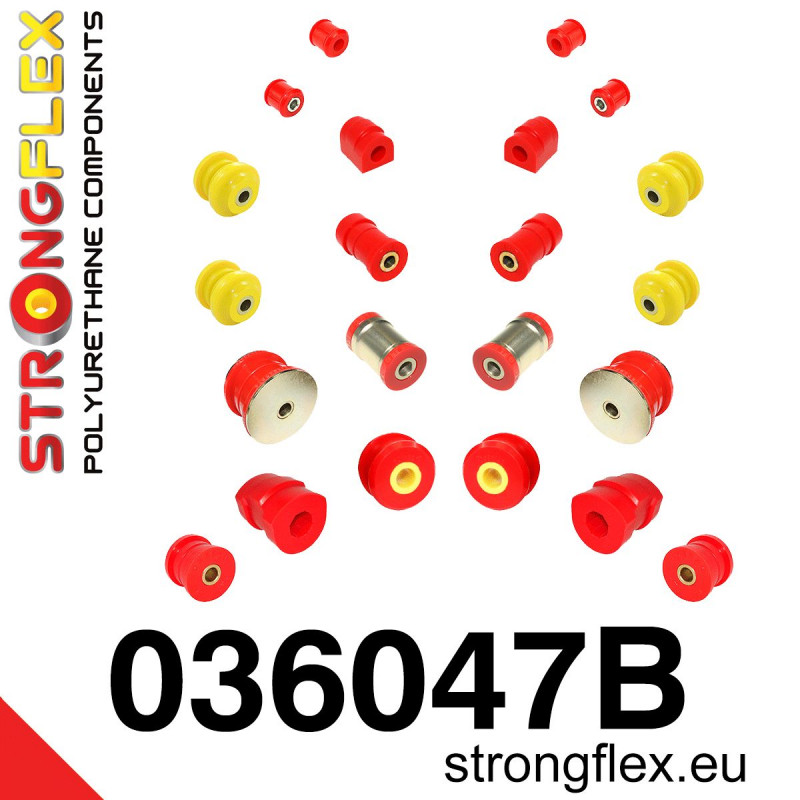

036047B: Front and rear suspension bush kit

KIT ID: 036047B

Name: Front and rear suspension bush kit

Fit:

BMW E36 90-99

BMW E36 M3

Include:

2 x 031195B Front wishbone bush
or

2 x 031369A Front lower arm bushes M3 eccentric SPORT

2 x 031183B Front anti roll bar bush

0/2 x 031525B Front anti roll bar link bush

2 x 031173B Rear trailing arm front bush
2 x 031174B Rear control arm upper inner bush
4 x 031175A Rear arm - outer bush SPORT
2 x 031176B Rear control arm lower inner bush
2 x 031167B Rear anti roll bar bush
2 x 031789B Rear anti roll bar link to anti roll bar bush
2 x 031790B Rear anti roll bar link to arm bush

Pcs/prod: 20/22

Required/car: 1

Diagrams:

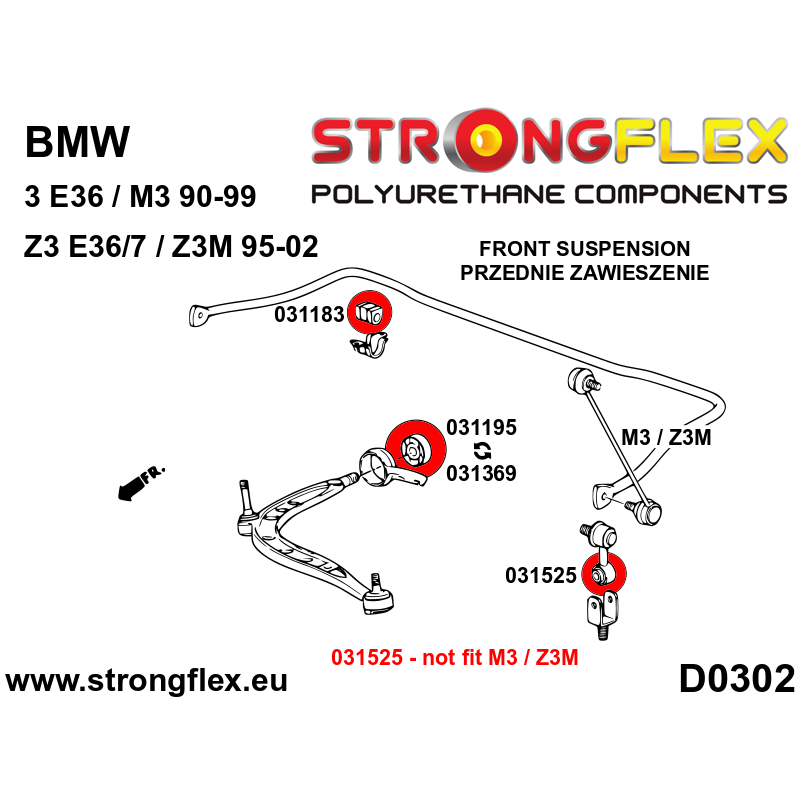

D0301

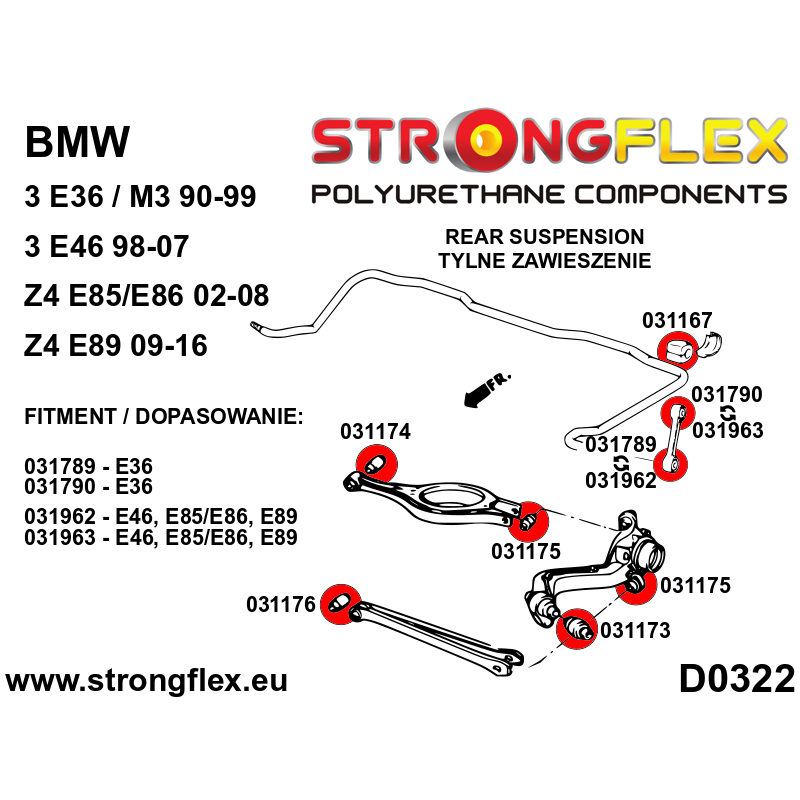

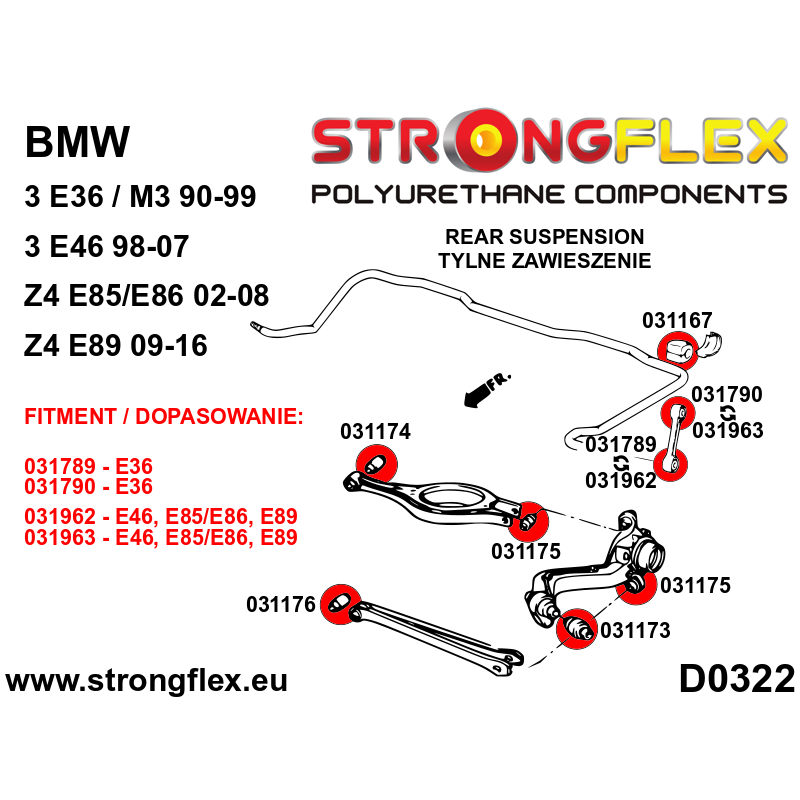

D0322

NOTE! *

Bush 031369 is only present in SPORT version 90ShA

Bush 031525 works only with anti roll bar link mount to lower arm, not the shock absorber.
Not fit the E36 M3 and Z3M models.

NOTE!
Measure Anti Roll Bar diameter before placing order.

NOTE! RELATED MAINLY WITH drift, motorsport ect.

Front Wishbone Bushes (031195 or 031369) can be prepared to fit the arm from the E46 model.
E46 Control Arm is longer and larger negative (wheel angle) can be achieved in comparison to the mass and E30/E36 geometry.
Place a note in the order if you are interested in such bushings.
Equivalent of "centric" bush is No. 031737, and "eccentric" 031738.
These bushes can also be purchased separately.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
